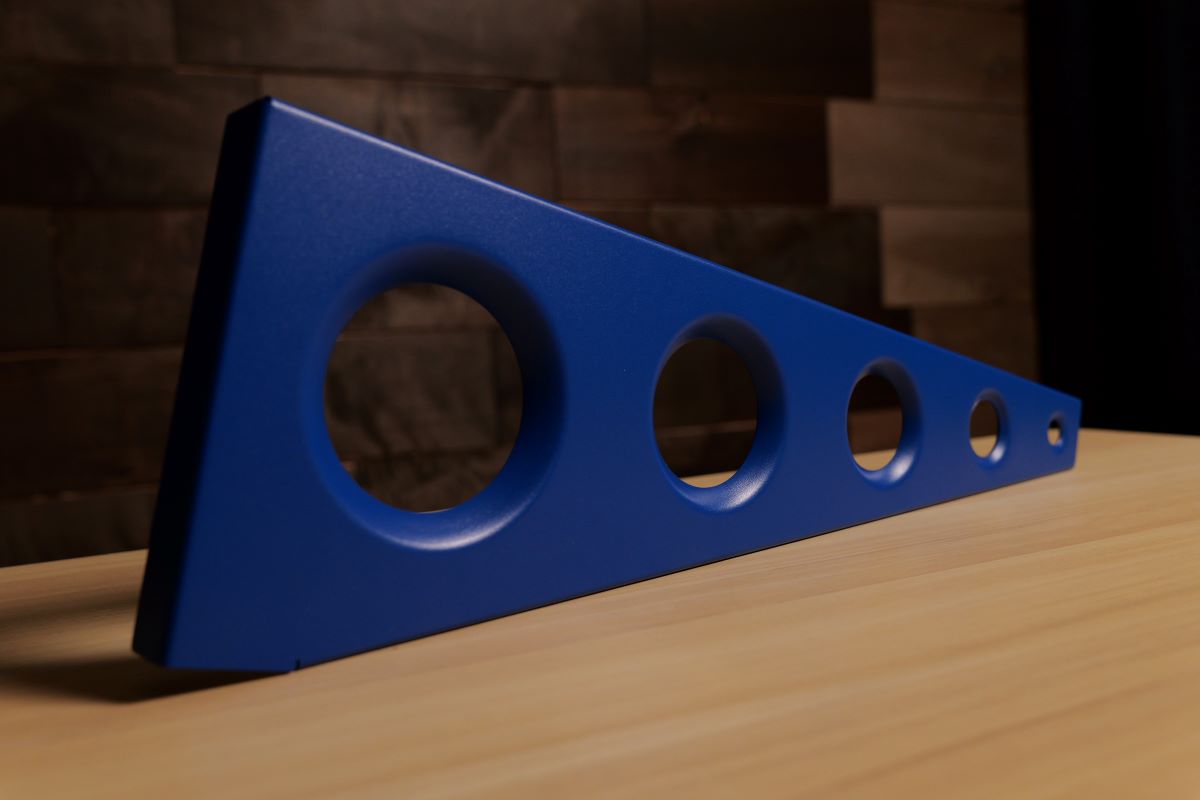

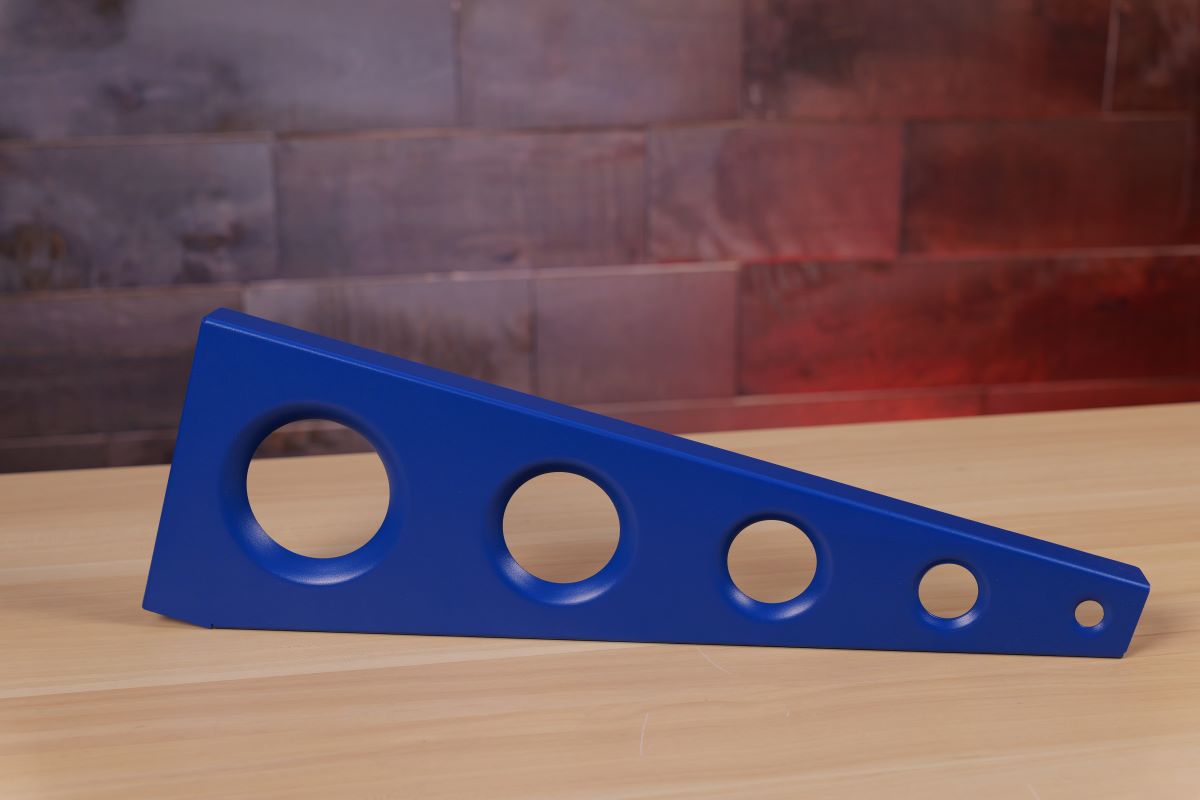

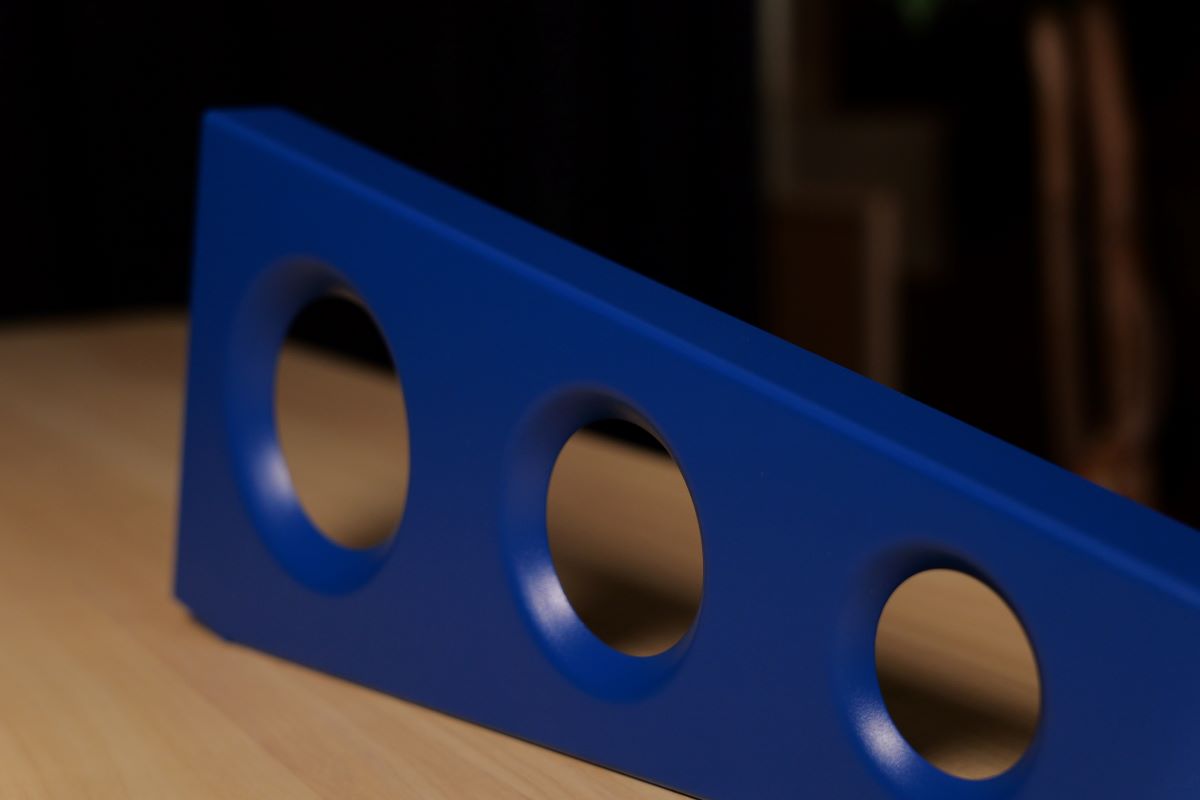

Dimple Forming
Dimple Forming involves pressing the edge of the hole between dimple dies to form a beveled/flared edge.
It is part of our in-house services, and can be completed within our fast 2-3 day lead time.
Common Applications
Strengthening: Dimples can stiffen thin parts, allowing for increased strength while reducing overall weight.
Weight Reduction: Material can be strategically removed by adding dimples, all while maintaining the part's strength.
Tread Plate: Small, protruding dimples create an effective anti-slip surface.
Cosmetics: Dimples can be used for aesthetic purposes.

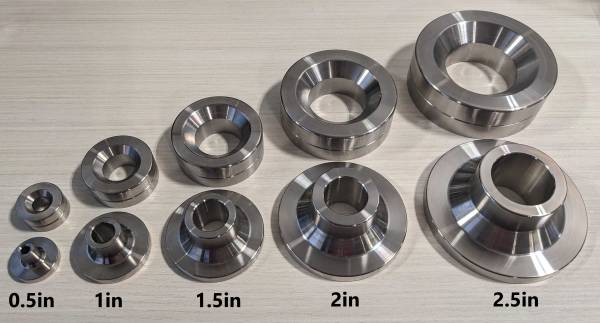

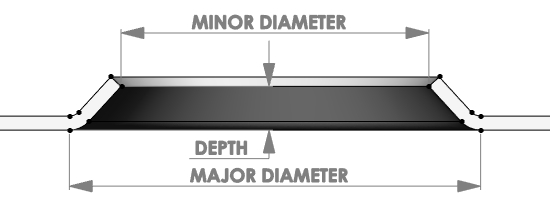

Sizes
| Dimple Die Size | Minor Diameter | Major Diameter | Depth |
|---|---|---|---|
| 0.5“ Dimple Die | 0.510“ | 12.954mm | 0.860” | 21.844mm | 0.091“ | 2.311mm |
| 1“ Dimple Die | 1.037” | 26.340mm | 1.518“ | 38.557mm | 0.146” | 3.708mm |
| 1.5“ Dimple Die | 1.618“ | 41.097mm | 2.250” | 57.15mm | 0.237“ | 6.020mm |
| 2“ Dimple Die | 2.186” | 55.524mm | 2.950“ | 74.93mm | 0.315” | 8.001mm |
| 2.5“ Dimple Die | 2.747“ | 69.774mm | 3.670” | 93.218mm | 0.390“ | 9.906mm |
Materials
Our stock dies are rated to handle:
5052-H32 Aluminum (thickness up to 0.13” | 3.302mm)
Cold Rolled Steel (thickness up to 0.13” | 3.302mm)
Galvanneal (thickness up to 0.13” | 3.302mm)
304 Stainless Steel (thickness up to 0.094” | 2.388mm)
Finishes
Parts with no finish may show minor tool marks, cosmetic bare metal finishes will be touched up where possible.

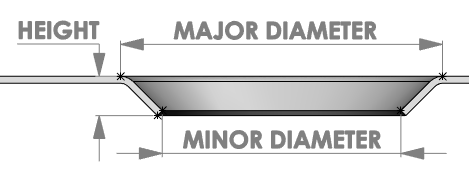

Tolerances
We only guarantee tolerances on a few key dimensions:
Major Diameter: ±0.040“ | ±1.016mm
Minor Diameter: ±0.040” | ±1.016mm
Height: ±0.040“ | ±1.016mm
The formed feature geometry in the models is approximate showing the key dimensions.
The sides are not exactly conical and will have a slight curvature.

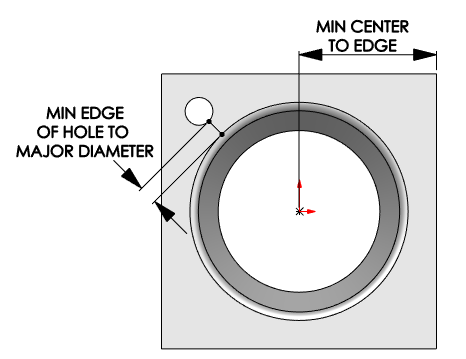

Minimum Bends
Minimum Center-To-Edge
0.5" Dimple: 0.61” | 15.494mm
1" Dimple: 1.00“ | 25.4mm
1.5" Dimple: 1.44” | 36.576mm
2" Dimple: 1.86“ | 47.244mm
2.5" Dimple: 2.30” | 58.42mm
Maximum Center-To-Closest-Edge: 24“ | 609.6mm
Minimum Edge-Of-Hole to Major Diameter
2x material thickness
Maximum hole diameter = 0.375” | 9.525mm (use minimum center to edge for larger holes)

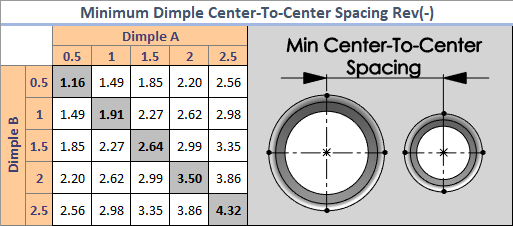

Minimum Center-To-Center Spacing (values in inches):
