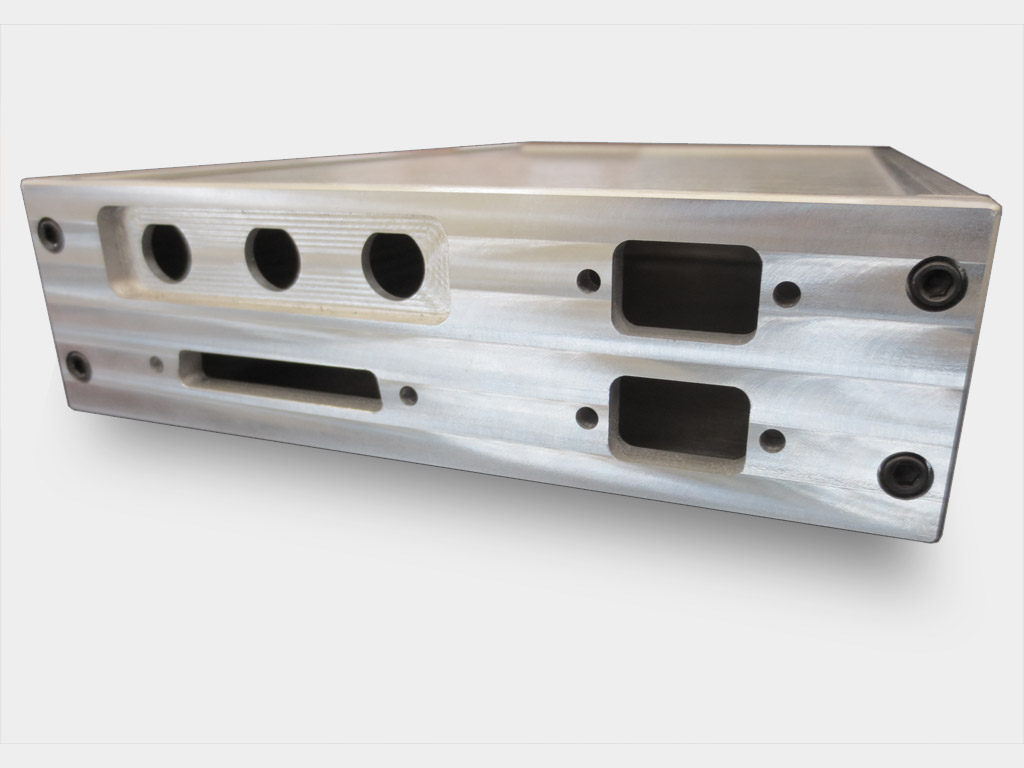

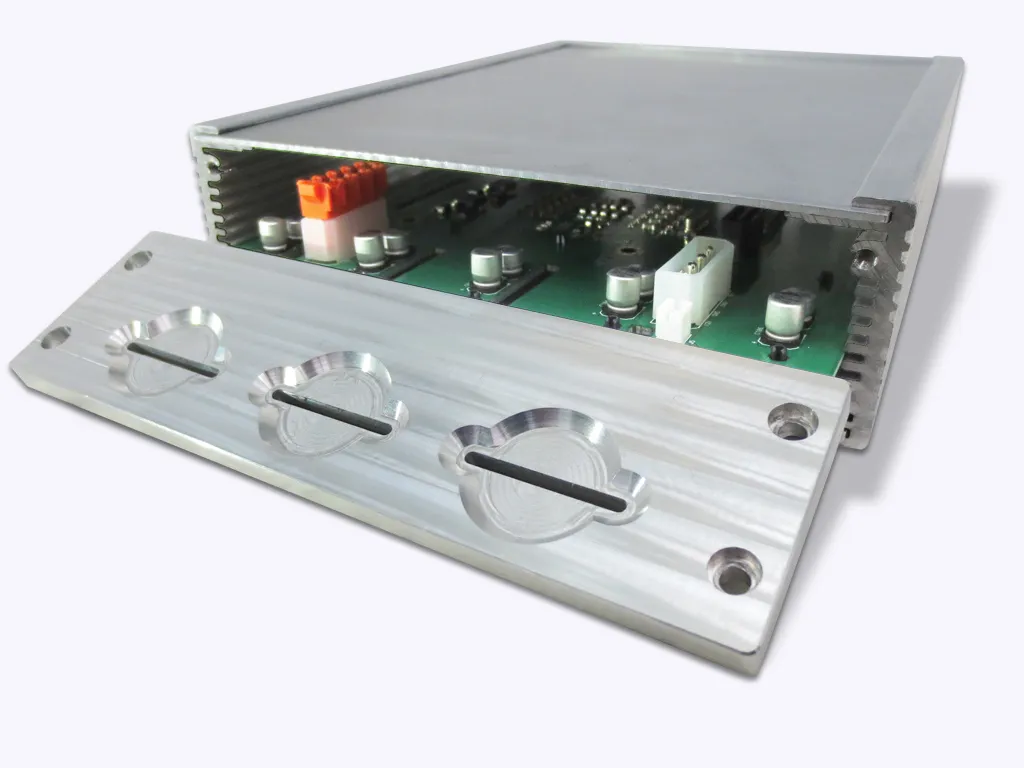

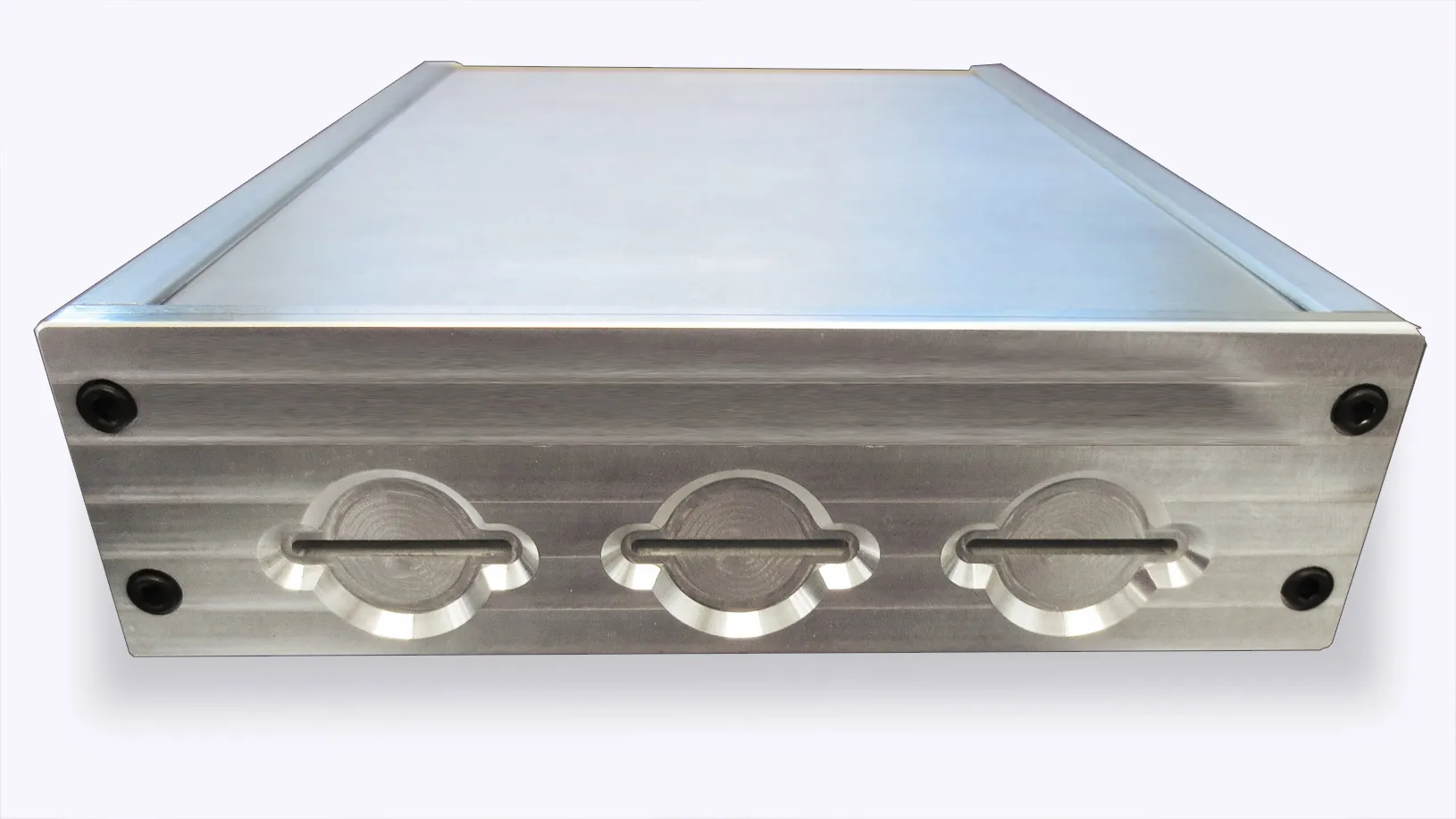

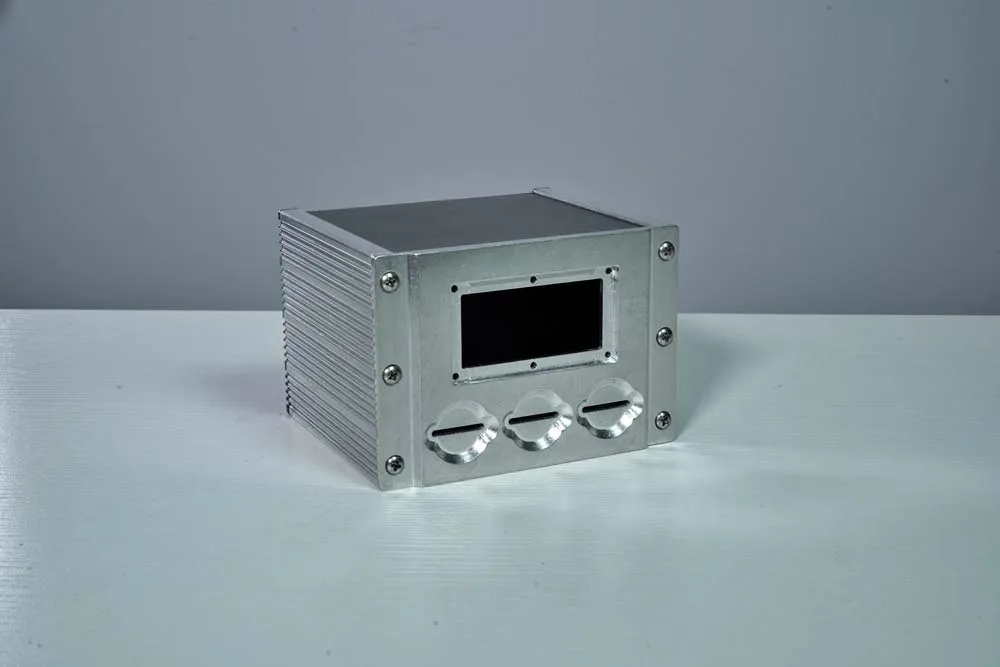

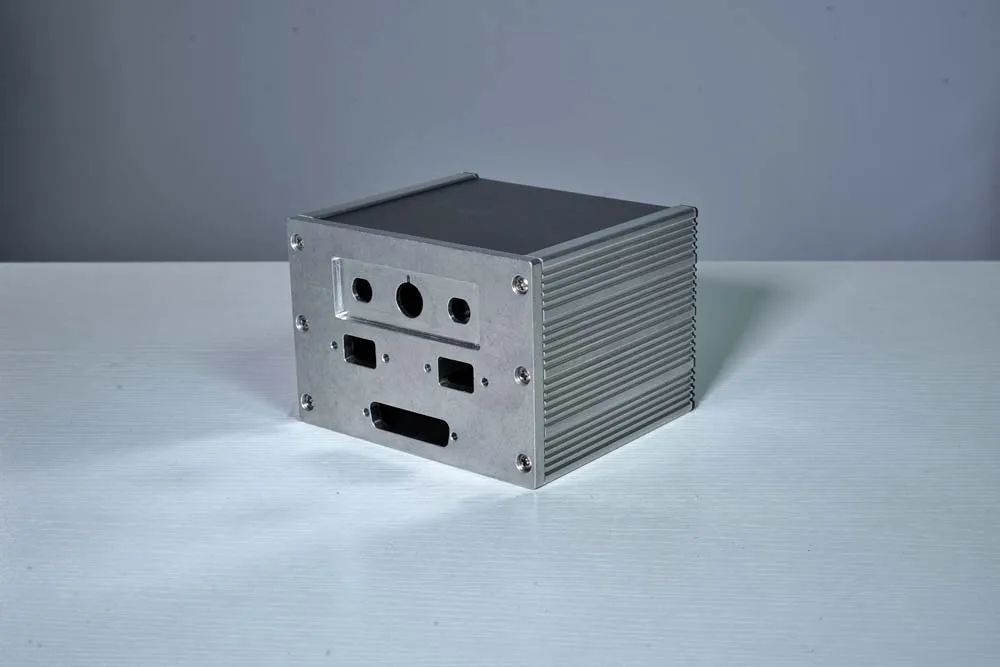

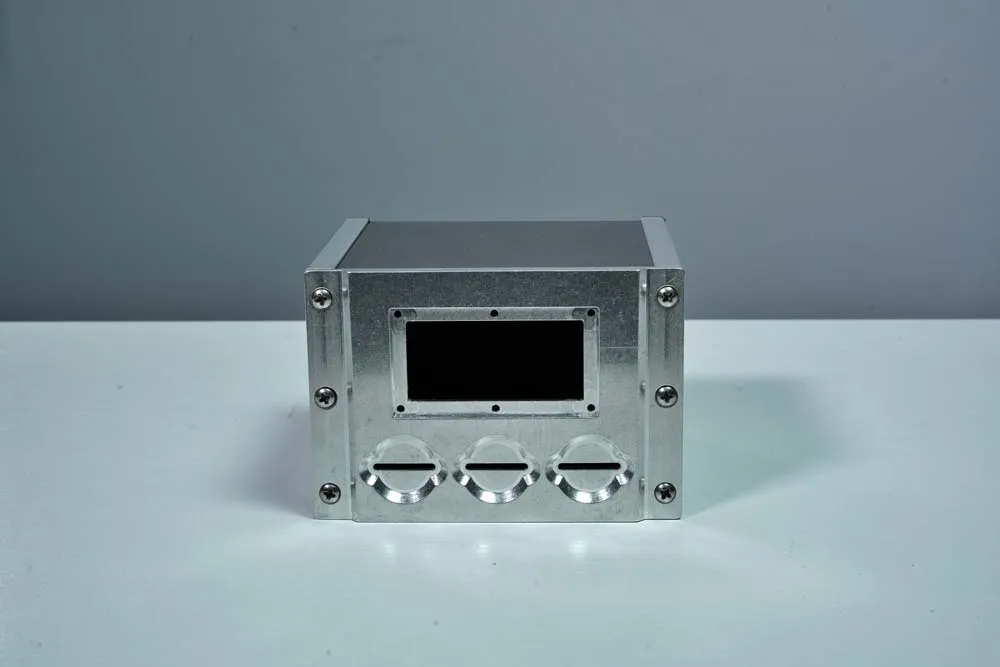

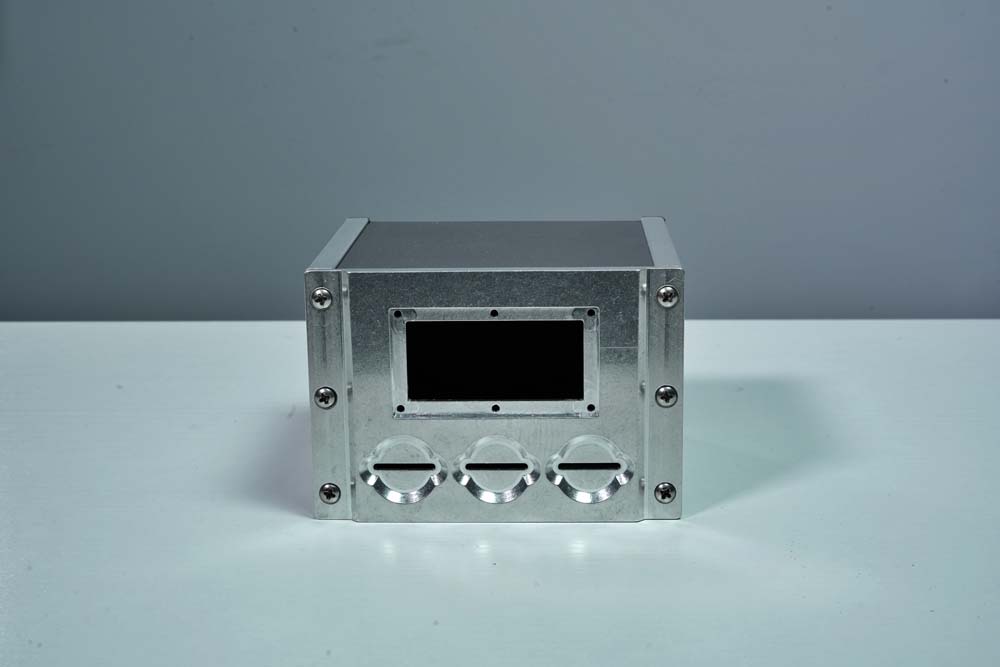

Hybrid enclosures use a combination of extruded sides, sheet metal top and bottom, and custom machined front and back plates.
The end result is a customized PCB enclosure that feels both durable and sophisticated.
We offer 6063 aluminum extrusions in two height options:
Manufactured in 2-3 Days
Fully finished to your specifications
No Minimum Order
Quantity 1 to high volume
Shipped Worldwide
Fast, efficient delivery via courier
Our stocked extrusions are 6063 Aluminum.
Top and bottom panels specifically must be 0.064" (1.63mm) 5052 aluminum in order to fit the aluminum extrusion's slots.

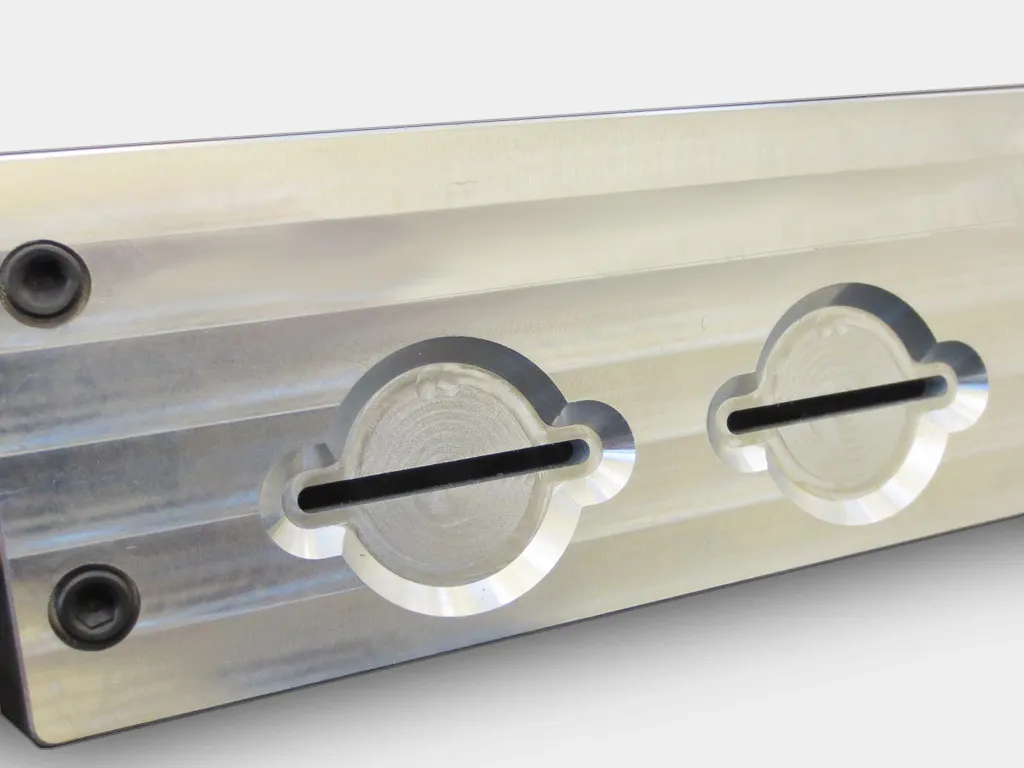

The machined front and rear panels are typically made from 6061 Aluminum, as this type of aluminum is very easy to machine.
The aluminum extrusions (side rails) come in a bare aluminum mill finish. Powdercoat and/or chemical conversion coating can be applied to the extrusion as a secondary finish.
We do not recommend applying anodizing to aluminum extrusions.
The panels in an extruded aluminum enclosure can have many of our finishes applied (either for the entire enclosure, or part-by-part):
*Provided by a third-party supplier for additional lead time.
The front, rear, top and bottom panels in a hybrid enclosure can have graphics and other marking applied:
The front, rear, top and bottom panels in a hybrid enclosure can have graphics and other marking applied:
| Key Dimensions | 1U Extruded Enclosure | 2U Extruded Enclosure |
|---|---|---|
| External Height | 1.72" | 43.688 mm | 3.47" | 88.138 mm |
| Internal Height | 1.443" | 36.6mm | 3.194" | 81.1mm |
| Maximum Length | 35.0" | 889.0mm | 35.0" | 889.0mm |
| Maximum Width | 23.0" | 584.2mm | 23.0" | 584.2mm |
| Minimum Length | 2.0" | 50.8mm | 2.0" | 50.8mm |
| Minimum Width | 1.625" | 41.275mm | 1.625" | 41.275mm |
We are happy to provide custom or non-stock extrusion profiles for additional charges and an extended lead time.
| Key Resources | 1U Extruded Enclosure | 2U Extruded Enclosure |
|---|---|---|
| Extrusion Dimensions | ||
| Side Extrusion | ||
| Extrusion Case Guide | ||
| Extrusion Case |
